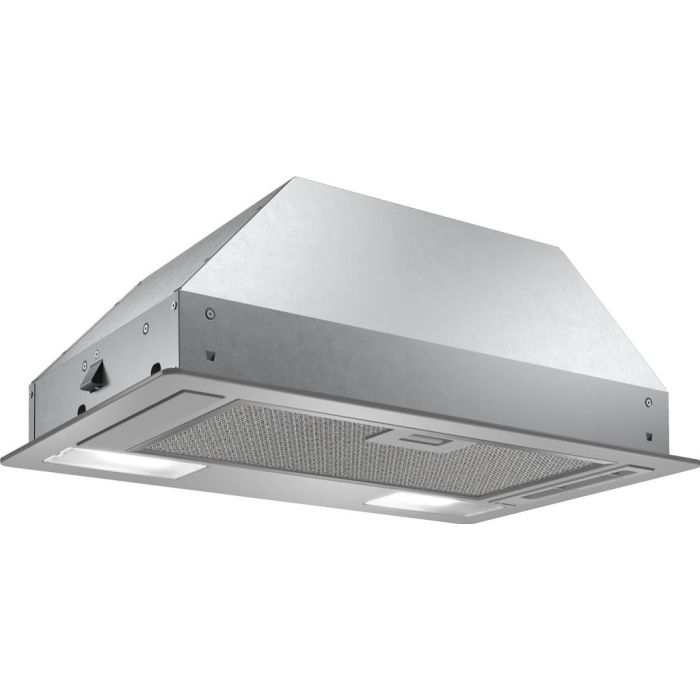

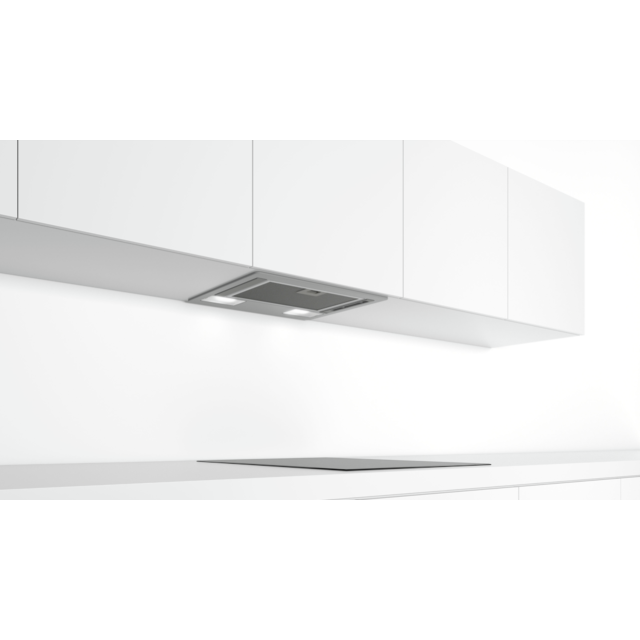

Bosch DLN53AA70B, Canopy cooker hood
Please call 01543 502536 for information.
Colour
Metallic Silver
Manufacturer Guarantee
2 years
EAN
4242005095391
Energy Rating
D
Key performance features:
- Energy Efficiency Class: D (at a range of energy efficiency classes from A+++ to D)
- Max. extraction rate: 302 m3/h
- Noise max. Normal Level: Noise, max. speed in normal us: 62 dB dB*

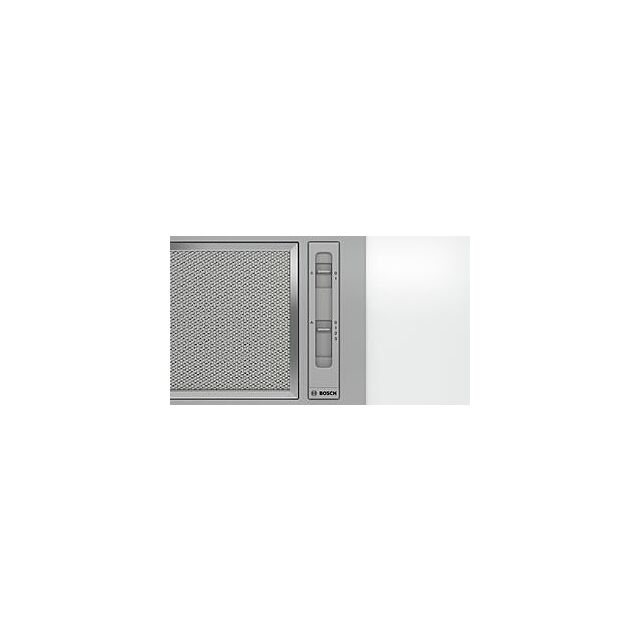

- Slider switch control for extractor speeds and light
- 3 power levels
- Single motor
- 2 x 3W LED
- Colour Temperature: 2700 K
- 1 removable metal grease filter cassette
- Installation: integrated
- Canopy hood
- Slider switch control
- Mechanical
- Suitable for ducted or recirculating operation
- For recirculated extraction recirculating kit (accessory) needed
- Extraction rate according to EN 61591: max. 302 m³/h
- Noise level according to EN 60704-3 and EN 60704-2-13 at maximum normal setting: extraction rate: 62 dB(A) re 1 pW (48 dB(A) re 20 µPa sound pressure)
- Power rating: 121 W
- Light Intensity: 78 lux
- Electrical cable length 1.5 m
- Diameter pipe Ø 120 mm (Ø 120 mm enclosed)
- Dimensions exhaust air (HxWxD): 208-208 x 534 x 300 mm
- Dimensions recirculating (HxWxD): 208-208 x 534 x 300 mm
- Built-in dimensions (HxWxD): 208 x 493 x 257 mm
- Blower Efficiency Class: E*
- Lighting Efficiency Class: D*
- Grease Filtering Efficiency Class: D*
- Average Energy Consumption: 67.7 kWh/year*
- Recirculating kit DWZ0IN0A0
| Energy Rating | D |
|---|---|
| Type of Control / Appliances | Mechanical |
| Type of Control Settings | Mechanical slider |
| Construction Type | Built-In |
| Installation Type | Built-In |
| Appliance Current (A) | 5 |
| Appliance Voltage (V) | 220-240 |
| Appliance Frequency (Hz) | 50 |
| Plug Type | GB plug |
| Cord Length | 150 |
| Warranty Duration | 2 |
| Approval Certificates | CE |
| Min Niche Width | 493 |
| Max Niche Width | 493 |
| Niche Depth | 257 |
| Number of Lights | 2 |
| Noise Level | 62 |
| Typology | Built-in/Built-under |
| Operating Mode | Convertible |
| Motor Location | Integrated motor in hood body |
| Fluid Dynamic Efficiency | 9.5 |
| Fluid Dynamic Efficiency Class | E |
| Lighting Efficiency | 12.1 |
| Lighting Efficiency Class | D |
| Grease Filtering Efficiency | 66.0 |
| Grease Filtering Efficiency Class | D |
| Max Air Flow | 302 |
| Min Air Flow | 130 |
| Air Flow Boost | 0.0 |
| Sound Power Max Speed | 62 |
| Sound Power Min Speed | 46 |
| Max Output Air Extraction | 302 |
| Max Output Recirculating Air | 300 |
| Grease Filter Material | Washable aluminium |
| Grease Filter Type | Kassette |
| Number of Motors | 1 |
| No Return Air Flow Flap | Yes |
| Diameter of Air Outlet | 120 |
| Is Soft Bundle | No |
| Manufacturer | Bosch |
| GTIN | 4242005095391 |
| Colour | Metallic Silver |
| Model Number | DLN53AA70B |
